Industrial Dust Collection

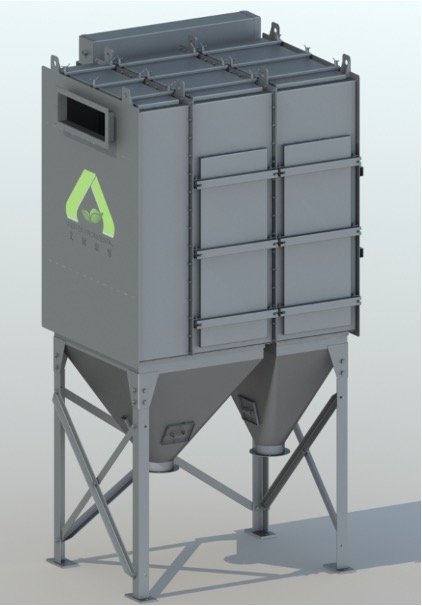

Sintered Plate Dust Collector
Sintered plate dust collector is the fruit of the technological cooperation between Japan Nippon Iron Mining and our company AIER. This dust collector uses sintered plate as the core filter element, has the distinguishing features of dramatic high filtration efficiency, ultra-long service life and nearly non-maintenance. It is widely used in different industries: rubber, metallurgy, chemical industry, non-ferrous metal smelting and other industries with dust removal difficulty.
Performance Feature
- Super dust removal, effectively remove dust above 0.1 micron, emission concentration < 5mg/m³.
- Longservice life,service life is longer than 10 years because of high wear resistance filter material.
- It can be used in special working condition such as the dust contains 5% oil or 10% water , or acid and alkali particles.
Model | Filtration area (m²) | Air flow (m³/h) | Sintered plate | Compressed | Weight |
AR-SP–90 | 90 | 5000 | 10 | 0.45 | 1600 |
AR-SP–180 | 180 | 10000 | 20 | 0.45 | 2250 |
AR-SP–270 | 270 | 15000 | 30 | 0.45 | 2900 |
AR-SP–360 | 360 | 20000 | 40 | 0.6 | 3350 |
AR-SP–450 | 450 | 25000 | 50 | 0.6 | 4200 |
AR-SP–540 | 540 | 30000 | 60 | 0.6 | 4850 |
AR-SP–630 | 630 | 35000 | 70 | 0.6 | 5600 |
