Industrial Dust Collection

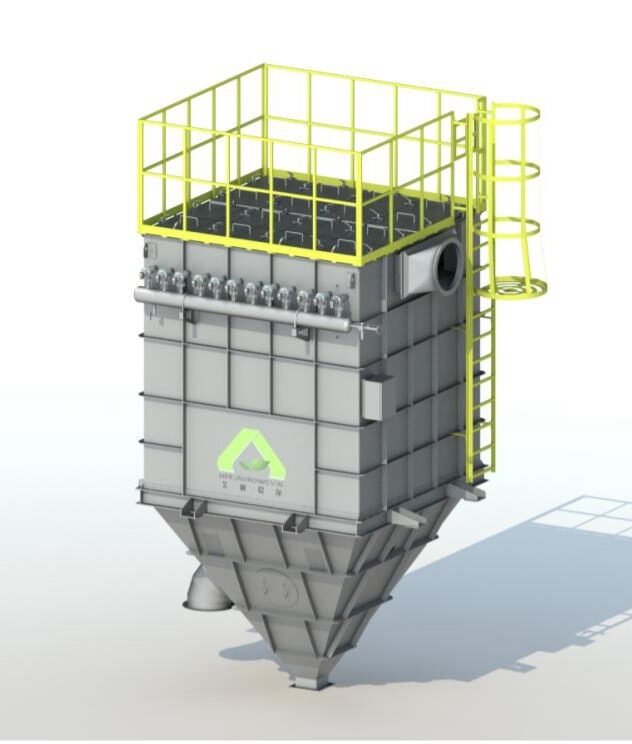

Pleated Bag Dust Collector
Pleated bag filter adopts the new pleated bag as the filter element, which can reduce the volume of the dust collector by more than 40% under the same filtration area.At the same time, it can be applied to the high temperature and high dust concentration occasions which the cartridge dust collector can not be applied to.
Performance Feature
- Modular design, convenient installation;
- Compared with the traditional bag filter, the use of pleated bag can reduce the volume of equipment, greatly reduce the footprint, and solve the problem of limited installation space of the dust collector;
- Unique design can substantially reduce the quantity of filter bags, significantly reduces the equipment running and maintenance costs.
|
Model |
Filtration area(m²) |
Air flow(m³/h) |
Pulse valve |
Filter wind speed |
|
|
Size |
Qty |
||||
|
AR-XBH-60 |
60 |
3600-5400 |
1.5″ |
6 |
1.0-1.5m/min According to the different dust properties,select different wind speed |
|
AR-XBH-80 |
80 |
4800-7200 |
8 |
||
|
AR-XBH-100 |
100 |
6000-9000 |
10 |
||
|
AR-XBH-120 |
120 |
7200-10800 |
12 |
||
|
AR-XBH-160 |
160 |
9600-14400 |
16 |
||
|
AR-XBH-200 |
200 |
12000-18000 |
20 |
||
|
AR-XBH-240 |
240 |
14400-21600 |
24 |
||
|
AR-XBH-320 |
320 |
19200-28000 |
32 |
||
