Industrial Dust Collection

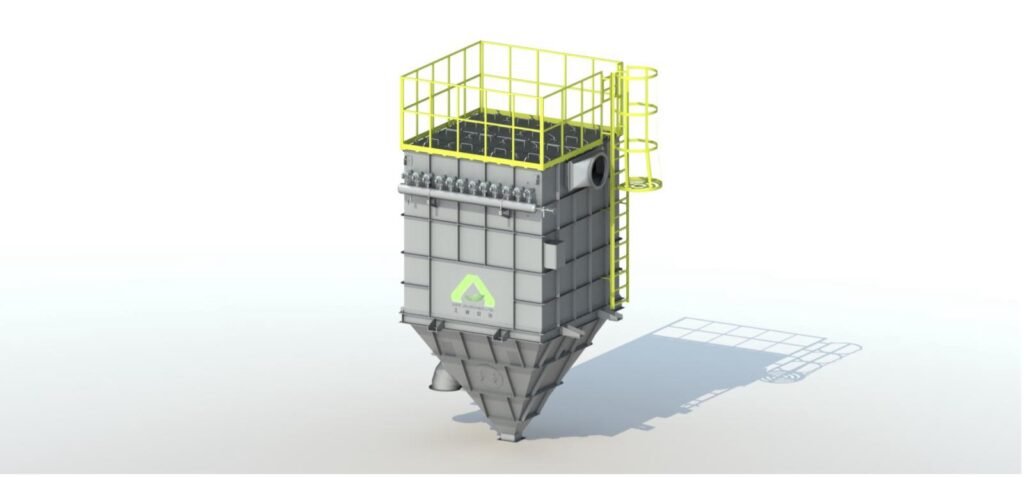

Cartridge Dust Collector
Cartridge dust collector is a dust removal equipment with the filter cartridge as the core filter element and the pulse spray mode. This series of products can be widely used in the treatment of industrial dust in new energy, shipbuilding, automobile, casting, non-ferrous metals, tobacco, light industry, rubber, medicine and other industries.
Performance Feature
- The unique submerged flow field design, more conducive to the filter cylinder ash cleaning;
- Building block structure,modular composition of the required processing air volume;
- Large air volume filter cartridge, greatly reducing the dust collector volume and footprint;
- The equipment operation resistance is low, effectively save the energy consumption of dust removal system;
- Maintenance and replacement of the filter cartridge is simple, fast, safe, shorten the downtime.
Model | Filtration Area(m²) | Filter wind speed (m/min) | Air flow(m³/h) | Unit quantity | Filter Cartridge quantity(piece) | |
Polyester | Paper | |||||
AR-CH2-8 | 75 | 168 | 0.5-1.2 | 2250-6750 | 1 | 8 |
AR-CH3-12 | 112 | 252 | 3360-8064 | 1 | 12 | |
AR-CH4-16 | 150 | 336 | 4500-10800 | 1 | 16 | |
AR-CH3-18 | 170 | 378 | 5600-12000 | 1 | 18 | |
AR-CH3-24 | 225 | 504 | 6750-16200 | 2 | 24 | |
AR-CH4-32 | 300 | 672 | 9000-21600 | 2 | 32 | |
AR-CH2-24 | 225 | 504 | 6450-16200 | 3 | 24 | |
AR-CH3-36 | 338 | 756 | 10140-24336 | 3 | 36 | |
AR-CH4-48 | 451 | 1008 | 13530-32472 | 3 | 48 | |
AR-CH3-48 | 451 | 1008 | 13530-32472 | 3 | 48 | |
AR-CH4-64 | 601 | 1344 | 18030-43272 | 4 | 64 | |
AR-CH3-60 | 564 | 1260 | 16920-40608 | 5 | 60 | |
AR-CH4-80 | 752 | 1680 | 22560-54144 | 5 | 80 | |
AR-CH3-72 | 676 | 1512 | 20280-48672 | 6 | 72 | |
AR-CH4-96 | 902 | 2016 | 27060-64944 | 6 | 96 | |
AR-CH4-112 | 1052 | 2352 | 31560-75744 | 7 | 112 | |
AR-CH4-128 | 1203 | 2688 | 36090-86616 | 8 | 128 | |
