Industrial Dust Collection

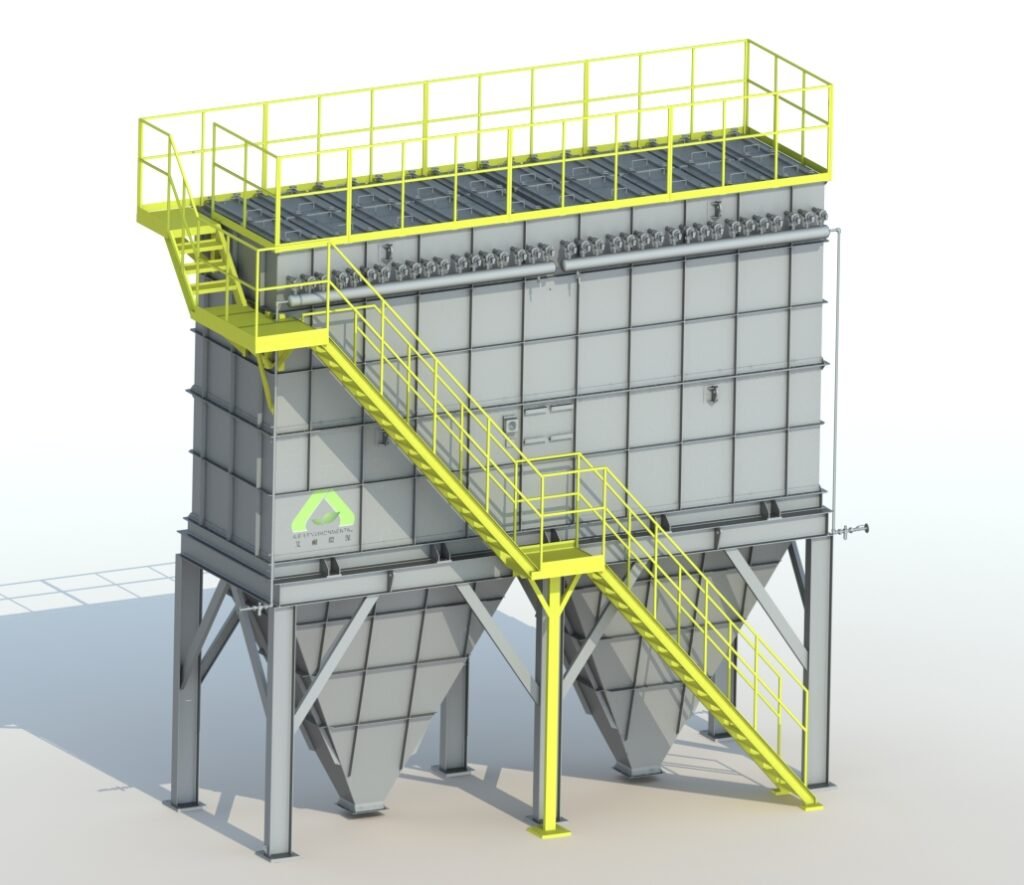

Bag Dust Collector
Bag dust collector is a dust removal equipment with a round cloth bag as the core filter element and a pulse injection mode. Widely used in new energy, electric power, metallurgy, building materials, chemical, medicine, food and other industries of dust control.
Performance Feature
- The inlet adopts a unique drainage structure, the flue gas flow evenly distributed to the filter element;
- Modular composition of the required processing air volume;
- The cabin is relatively independent, in order to replace the bag without stopping;
- Flu gas temperature, dust collector operating pressure detection, material level detection and fault detection system operation status detection.
|
Model |
Filtration Area(m²) |
Air flow(m³/h) |
Pulse valve |
Filter bag specification |
Filter bag quantity |
|
|
Size |
Qty |
|||||
|
AR-BH-460 |
460 |
26000-41000 |
2-3″ |
25 |
/ |
300 |
|
AR-BH-540 |
540 |
32000-48000 |
25 |
350 |
||
|
AR-BH-650 |
650 |
38000-57000 |
30 |
420 |
||
|
AR-BH-750 |
750 |
44000-67000 |
35 |
490 |
||
|
AR-BH-860 |
860 |
51000-77000 |
40 |
560 |
||
|
AR-BH-920 |
920 |
55000~82000 |
50 |
600 |
||
|
AR-BH-1070 |
1070 |
64000-96000 |
50 |
700 |
||
